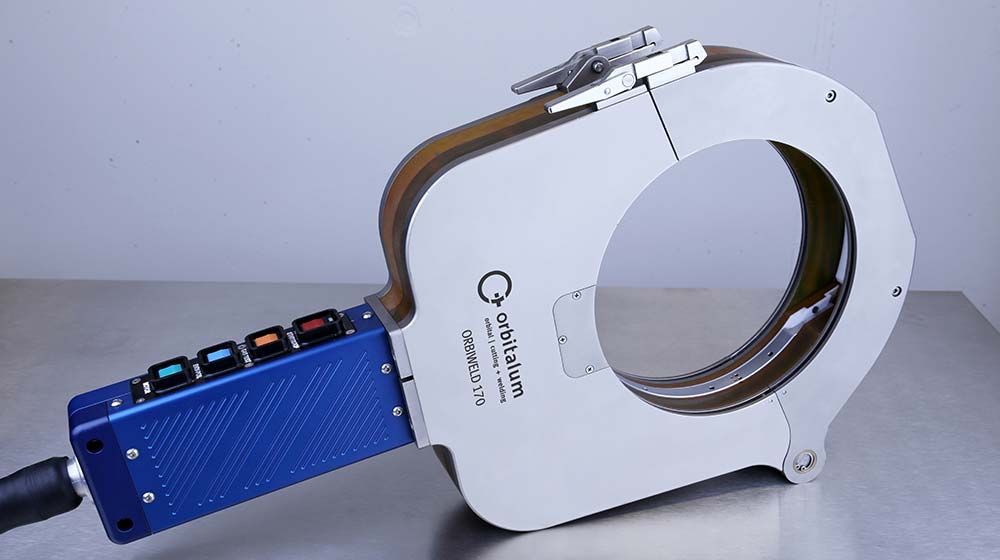

ORBIWELD 170

Enclosed orbital weld head
ORBIWELD 170: enclosed orbital weld head

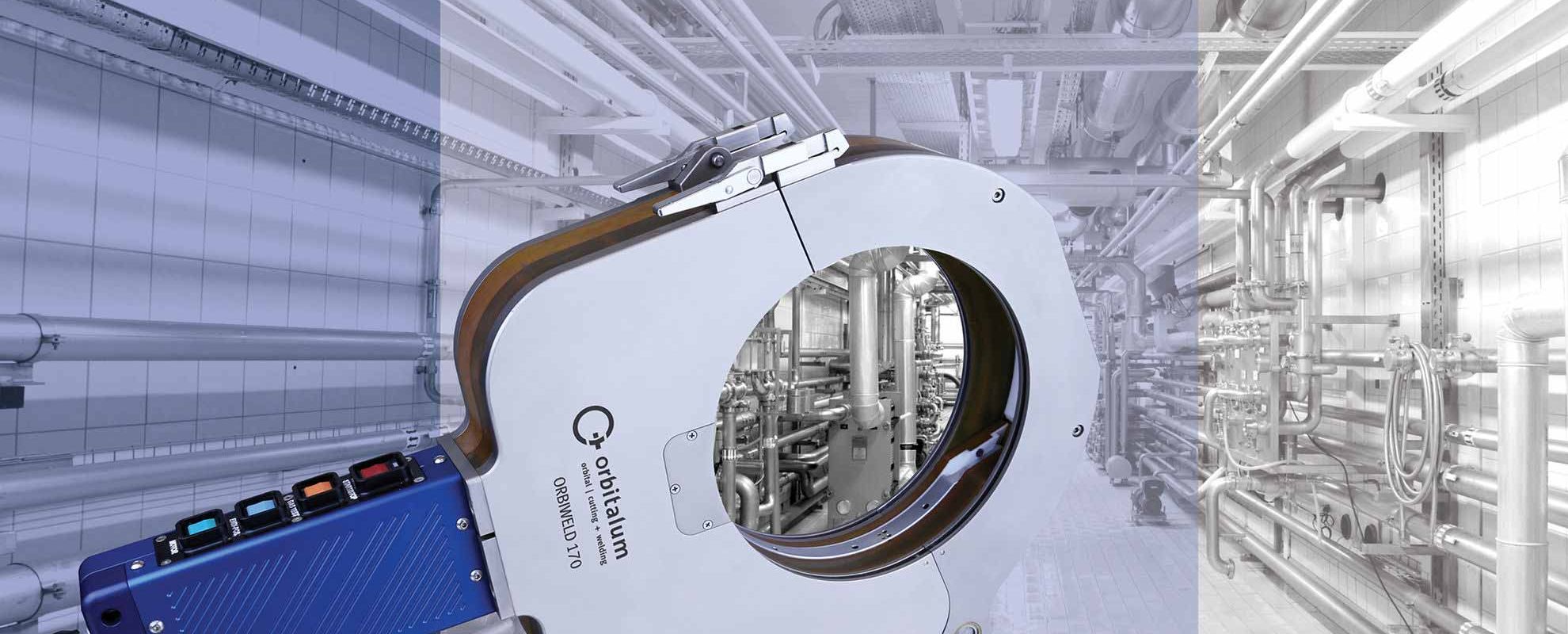

It is therefore particularly suitable
for applications in the chemical, pharmaceutical, food and beverage industry, where ever greater
demands are made on the closed weld heads by ever greater tube diameters and wall thicknesses.

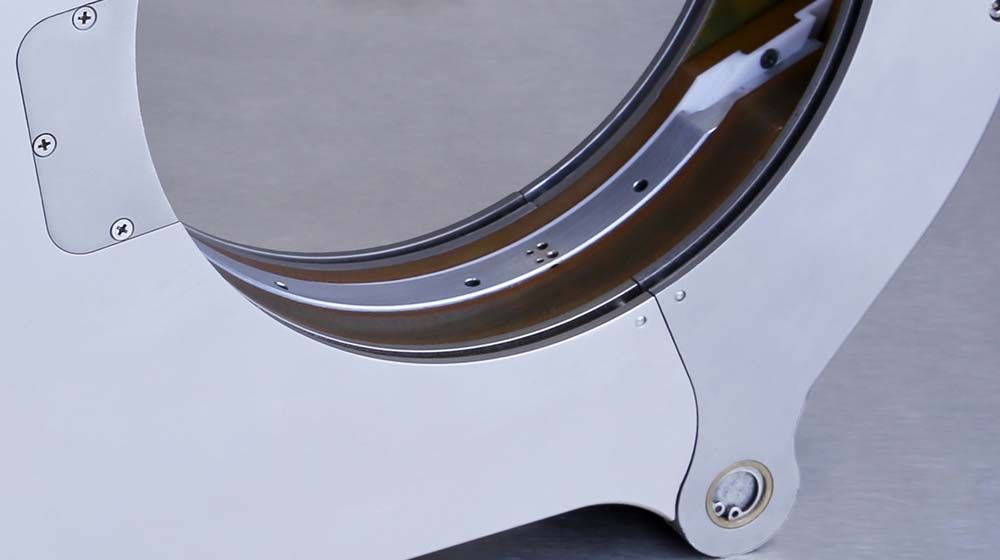

Coolant channels running through the entire weld head body ensure an excellent heat
dissipation that enable the ORBIWELD weld head to work continuously even at high welding
currents and intensive loady.

Scope of application
ORBIWELD 170
Tube OD
[mm] 50,00 - 170,00 [inch] 1.969 - 6.693
Wall thickness (depending on material)
[mm] 0,50 - 3,00 [inch] 0.020 - 0.118
