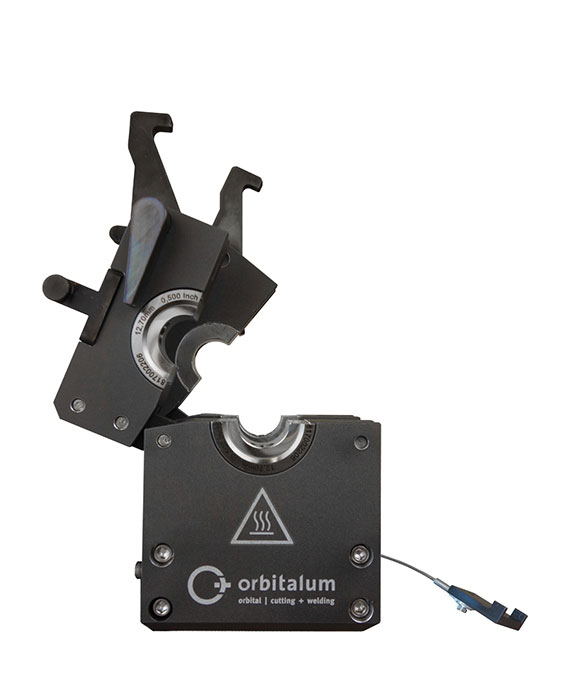

Clamping cartridge - Stainless steel

for OW17

Stainless steel. Removable clamping cartridge specifically for inline assembly or prefab production of modules. For the mounting of clamping inserts. An inser-tion gage which is permanently attached to the cartridge and thus cannot be lost ensures precise positioning to the tube joint to be welded. The clamping cartridges are supplied in a rugged, lockable plastic box.

Scope of delivery:

  • 1 x insertion gage for standard applications
  • 1 x insertion gage for COAX applications
  • 1 x 3/32" hexagon wrench
  • 1 x 1/16" hexagon wrench
  • 1 x plastic box


Suitable clamping inserts for different tube diameters must be ordered separately.

Can be used with
Clamping cartridge
OW 17
817 050 010
